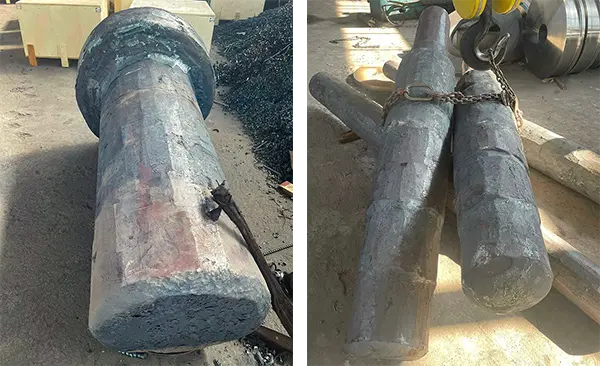

High-Load Forged Rods for Pressure Vessels

We provided a 20CrMnSi (custom-made) heavy pressure vessel blank made of forged rod materials, with high-order custom for the safe operation of high-pressure equipment.

Key Features:

Size & Tolerance: φ140×3500 mm, diameter ±0.08 mm, straightness ≤0.07 mm/m

Machining: Rough turning to Ra 3.2, machining allowance 0.5 mm for grinding, preliminary threading

Heat Treatment: Quenching at 860°C + tempering at 600°C, hardness HB 280–320, tensile strength ≥1100 MPa

Quality Control: Ultrasonic testing (UT) per GB/T 6402, no defects ≥φ2 mm

Application:

These rods are placed into large pressure vessels (80 m³) and are designed to handle ≥600 kN at 4.0 MPa working pressure.

The case study explains our ability to design and fabricate custom forged components manufactured to exact standards, for the harshest of environments, as well as areas within industry focusing on safety and reliability.

In the event that you have a difficult project or require something special, we can assist you!
